Automatic Transformer HV Foil Winding Machine

Brand Name : STT

Model Number : GY-BRJ

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 45 days

Packaging Details : seaworthy packing

Product name : tranformer HV foil winding machine

Usage : winding foil coil

Cu foil thickness : 0.15 ~ 2.0mm

Al foil thickness : 0.2 ~ 3.0mm

Winding speed : 0 ~ 200rpm

Power : 18.5kw

Color : optional

Warranty : 12 months

Contact Now

Automatic Transformer HV Foil Winding Machine

Introduction of HV foil winding machine GY-BRJ

Automatic HV foil winding machine GY-BRJ is dedicated to winding high voltage transformer foil coils ( Dry type high voltage coils ). During winding process, the machine provides constant tension. This machine can rectify deviation automatically, stop at the presetting stop point and weld lead-out and lead-in systems. According to presetting parameters, this machine can achieve precise axial moving with the infrared positioning function.

Main Components of HV foil winding machine GY-BRJ

Main winding motor
PLC
Touch Screen
VFD
LV electrical device
Pneumatic System
Guide rail
ARC Welder

Technical parameters of HV foil winding machine GY-BRJ

Typical standard specifications of GY-BRJ are shown below and these can be easily modified as requested.

Foil Width:	20 ~ 200mm
Conductor Foil Material:	Copper or Aluminum
Al Foil Thickness:	0.2 ~ 3.0 mm
Cu Foil Thickness:	0.15 ~ 2.0 mm
Inner Supply Coil(Min/Max):	Φ300mm/Φ400mm
Outer Supply Coil(Max.):	Φ1000mm
Max. Coil Weight:	450kg
Insulation Thickness:	0.02 ~ 0.15mm
Insulation Supply Coil ID:	Φ76mm
Maximum Insulation Supply Coil OD:	Φ400mm
Maximum Winding Length(with lead bar):	1600mm(2050mm)
Wound Coil Inner Diameter:	Ø300mm
Maximum Wound Coil Outer Diameter:	Ø1100mm
Maximum Wound Coil Weight:	1500kg
Welding Mode:	TIG,350A
Mandrel Torque:	1800N.m
Tension On Conductor:	50 ~ 3000N
Foil Decoiler Number:	1 set
Insulation Decoiler Number:	2 sets
Winding Speed:	0 ~ 200rpm
Motor Power:	18.5KW
Foil Edge Deburring Unit:	1 set
Cleaning Unit:	1 set

Automatic Transformer HV Foil Winding Machine

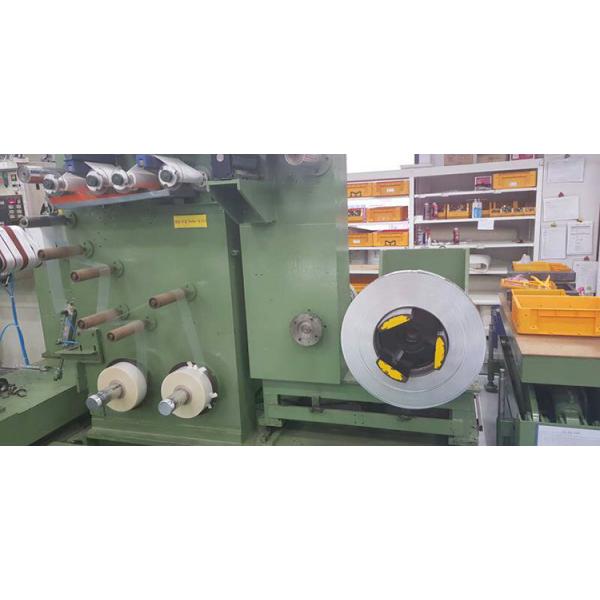

Fig 1: Transformer HV foil winding machine GY-BRJ's front view

Automatic Transformer HV Foil Winding Machine
Fig 2: Transformer HV foil winding machine GY-BRJ's back view
